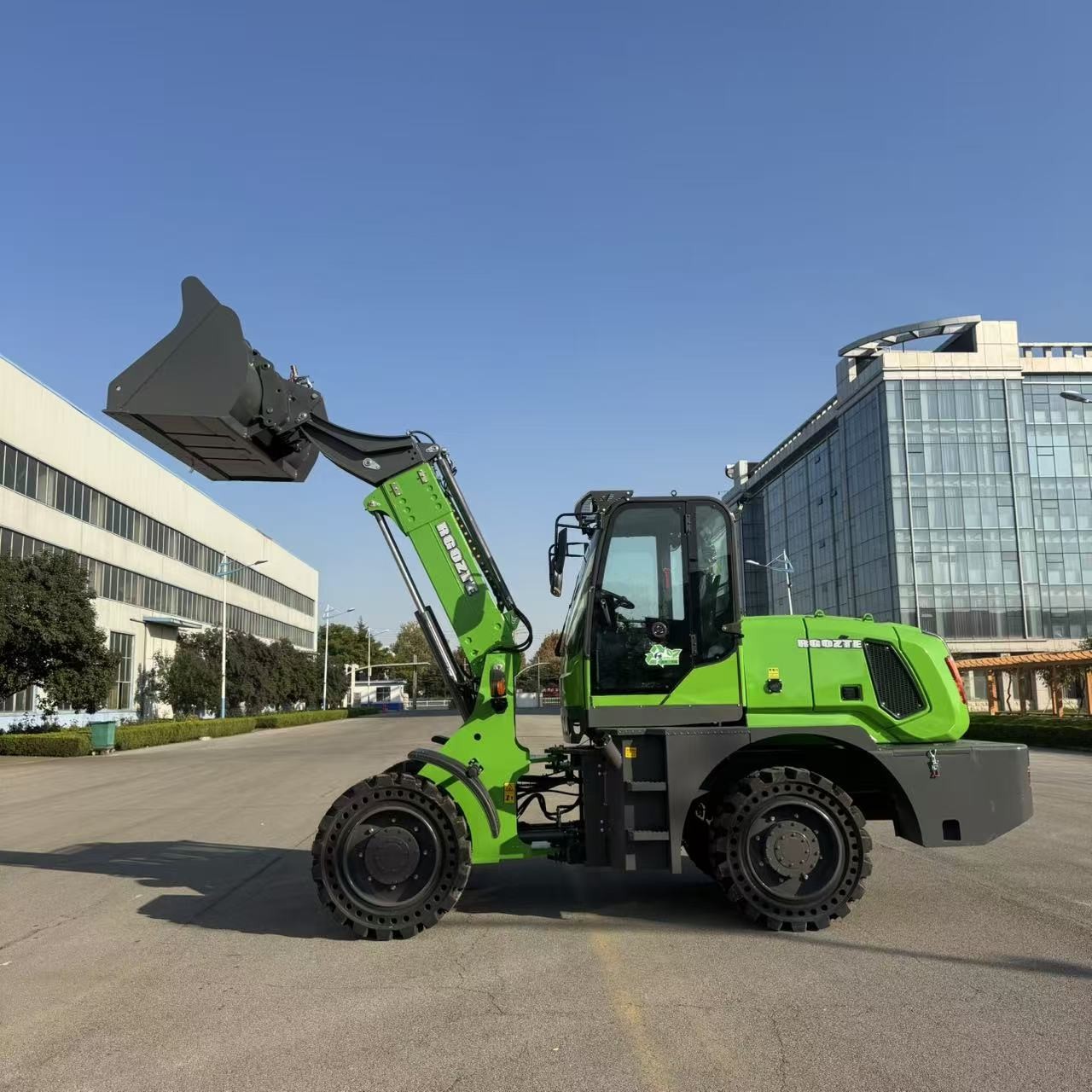

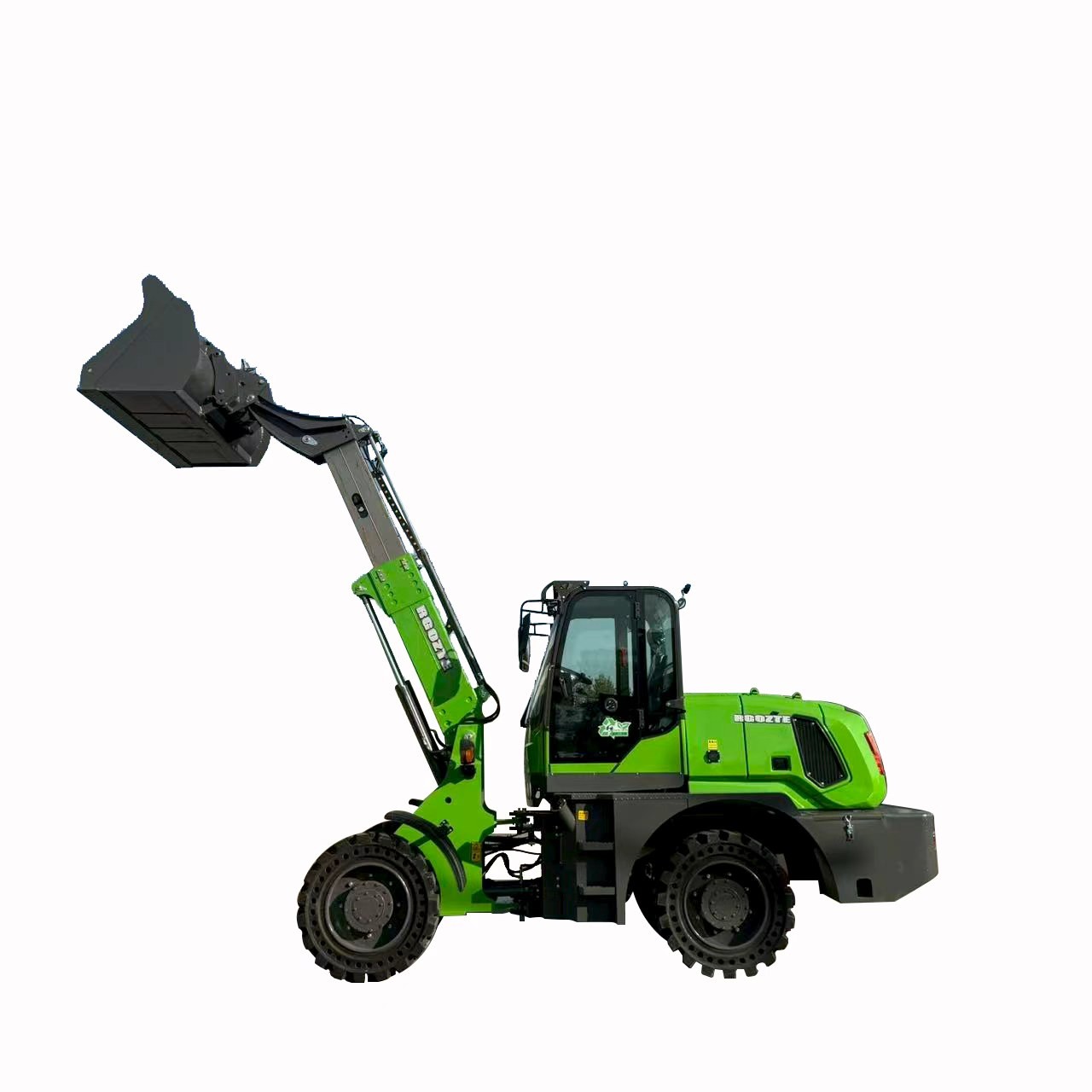

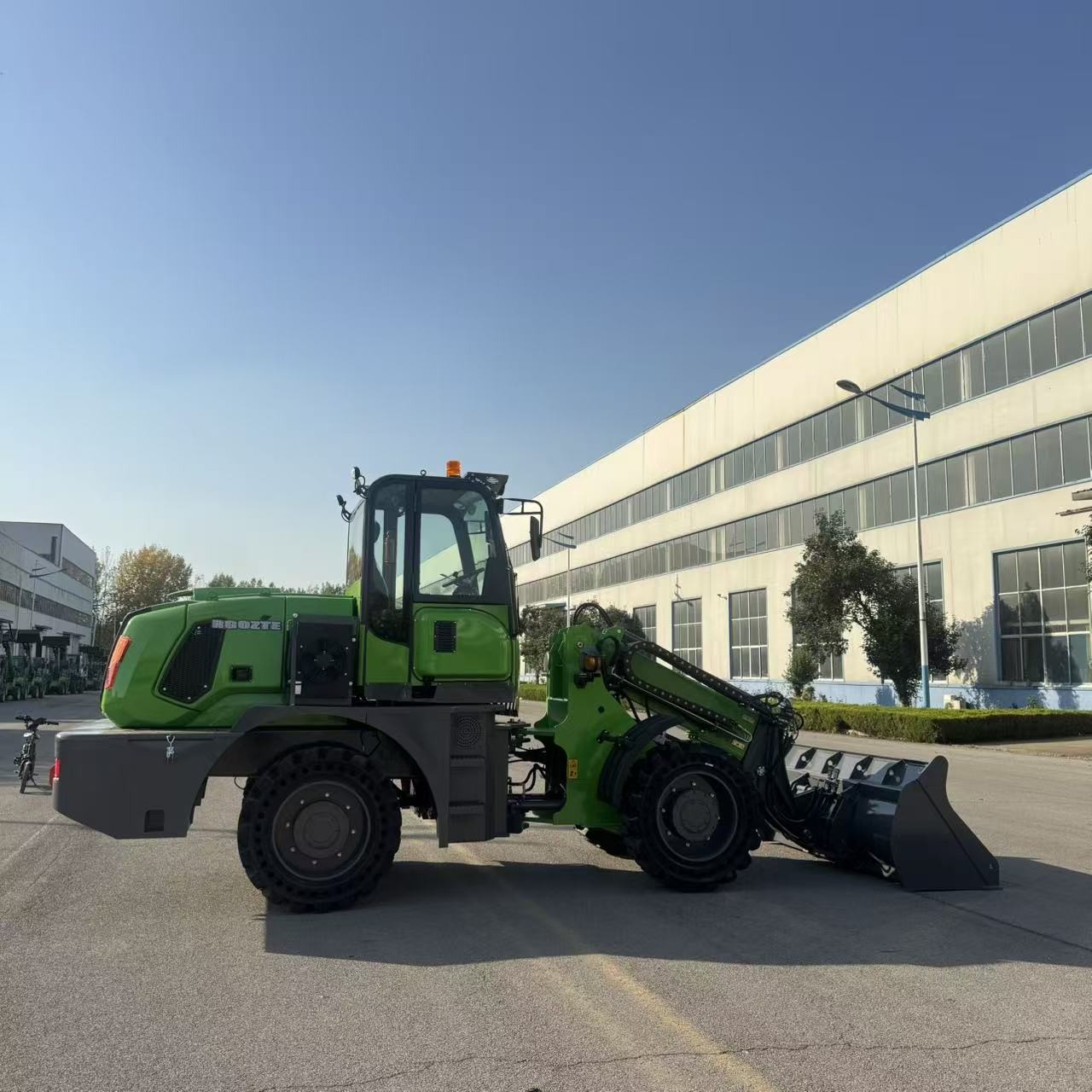

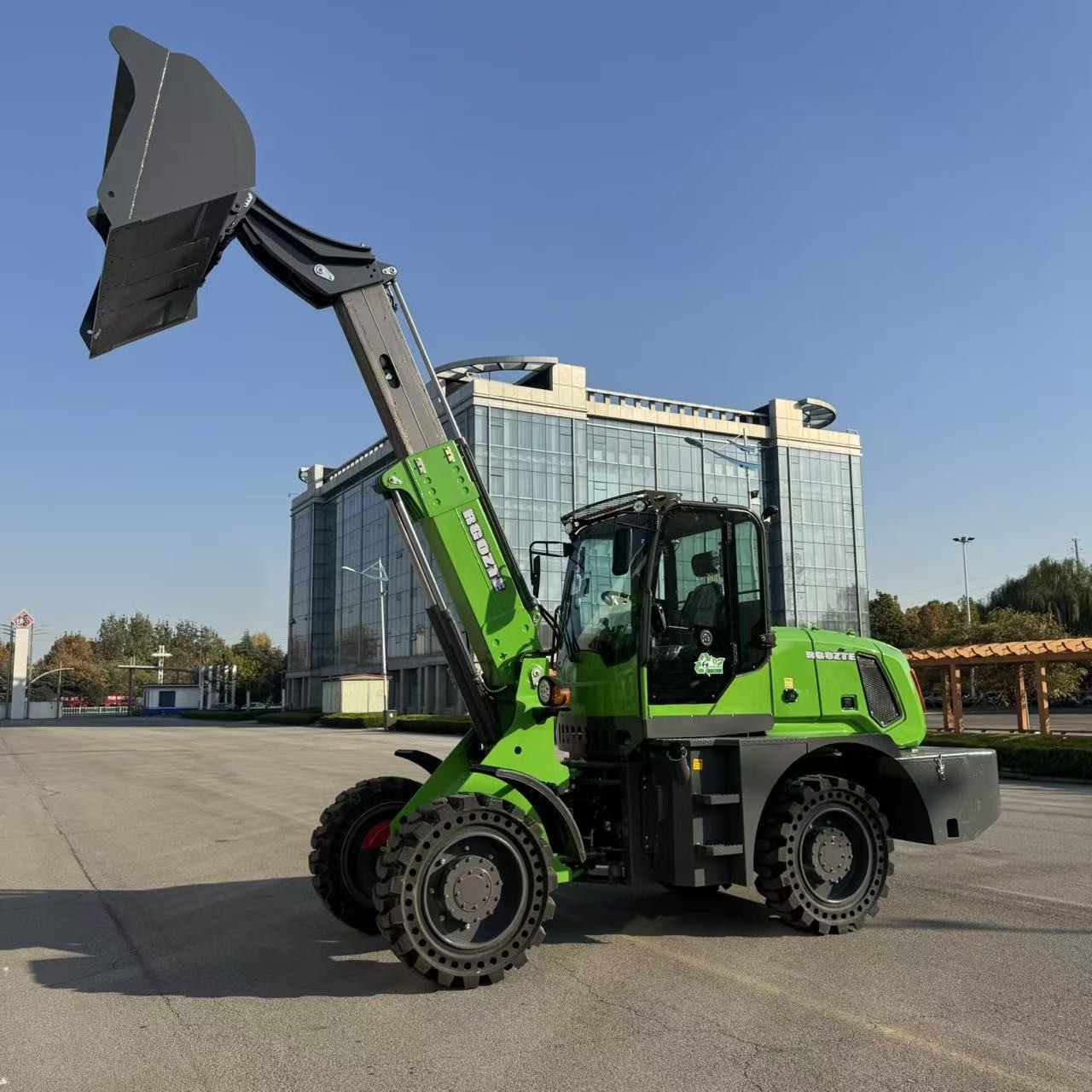

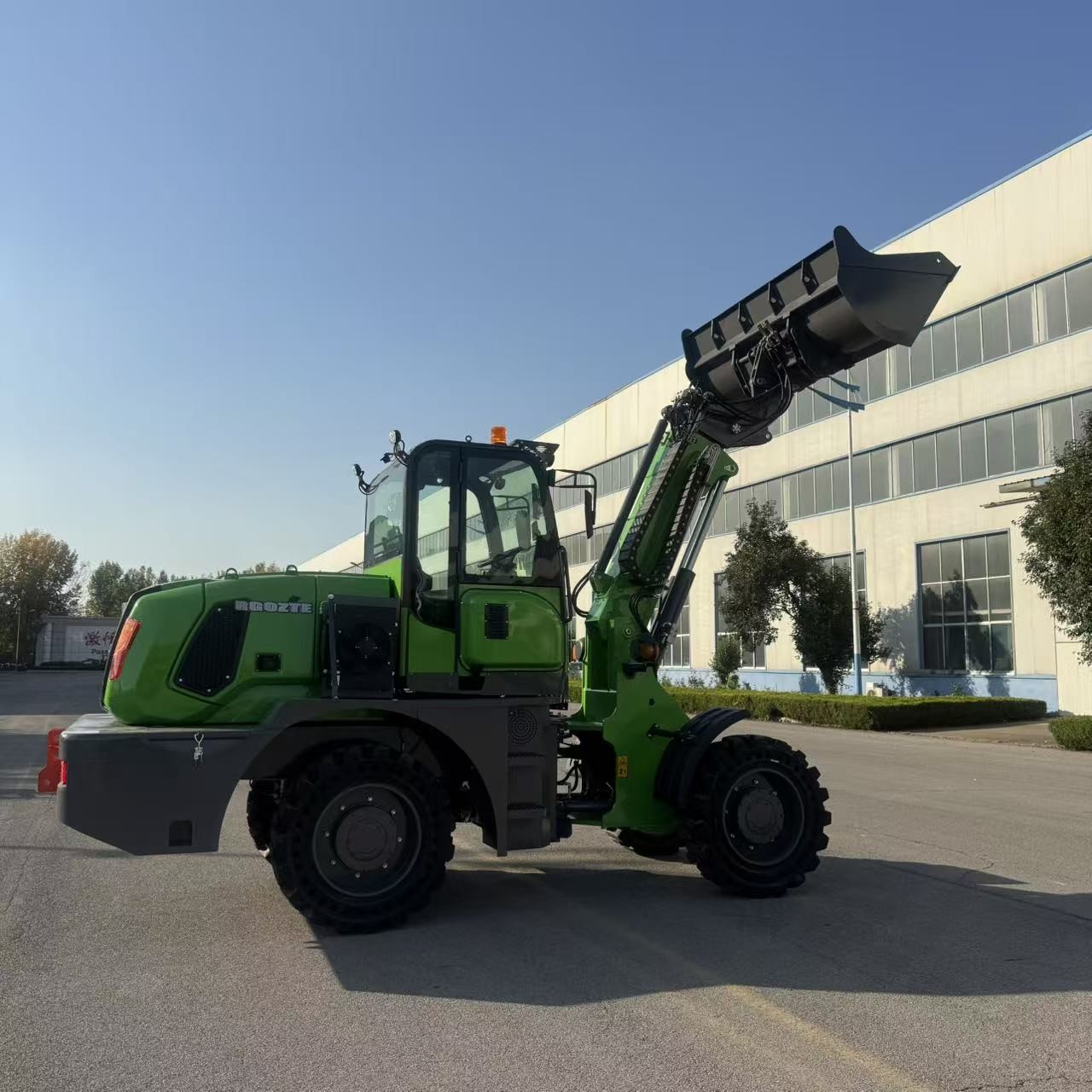

EV-20 Telescopic Boom

EV-20 Telescopic Boom
Product Introduction:


The  Electric Telescopic Boom Loader is a new-generation, eco-friendly, and high-efficiency construction machinery independently developed for modern low-carbon construction scenarios, urban engineering renovation, farm operation, warehouse logistics, and garden greening. Integrating energy-saving performance, flexible operation, and multi-functional expansion, this electric telescopic loader perfectly replaces traditional fuel loaders, solving the pain points of high fuel consumption, loud noise, serious exhaust pollution, and high maintenance costs of traditional construction equipment. It is an ideal lightweight handling and loading equipment for indoor and outdoor closed and low-altitude operation scenarios.

Adopting a pure electric drive system, the machine is equipped with a high-capacity professional engineering battery and a high-power silent driving motor, featuring stable power output, strong endurance, and zero exhaust emissions. Compared with diesel loaders of the same level, it reduces operating costs significantly, with lower daily power consumption and almost no need for oil circuit maintenance, greatly cutting long-term equipment operation and maintenance expenses. The whole machine runs with ultra-low noise, which meets urban environmental protection standards and construction noise limit requirements, making it suitable for residential area construction, indoor warehouse operation, night engineering construction and other scenarios with strict environmental assessment requirements.

Overall, the 2500 Electric Telescopic Boom Loader has outstanding advantages in environmental protection, energy saving, operating efficiency, safety and practicability. It is compact in structure, stable in performance, durable in use and low in comprehensive cost. It is widely applicable to construction engineering, municipal greening, agricultural breeding, factor




y logistics, community renovation and other fields, and is a cost-effective new energy construction equipment favored by domestic and foreign customers.


Send Inquiry
Description
Overall machine parametersMain Technical Parameters
ItemparametersItemParameters


Minimum turning radius(mm)5600Overall Length(MM)


5800
Theoretical gradeability(°)2115Overall Width(MM)2100
Maximum travel speed(km)32Overall Height(MM)2850
Minimum travel speed(km)8Minimum Ground Clearance(MM)350
Maximum dump height(mm)3550Track Width(MM)1685

Retracted Arm Dump Height(mm

)

2800Operating Weight(KG)6300

Extended Arm Dump Height(mm

)

3800Bucket Dimensions (L × D × H)(MM)2000/580/1000

Max Lifting Capacity(Arm Retracted)(kg)

2200Bucket Capacity (m³)1.3

Max Lifting Capacity(Arm Extended)(kg)

1000

Wheelbase

(MM)

2600

Dump Reach(MM)1150

Dump Angle(°)33.5

Working Parameters


Transmission System Parameters
Item ParametersItemParameters
Travel Motor35kwTransmission TypeDE20High/Low Speed
Working Motor(Dual Motors)25kw*2Number of Gears2 Forward, 2 Reverse
Travel Controller450ABrake TypeHydraulic Brake
Pump Controller350A*2AxleElectric Dedicated Large Wheel Reducer

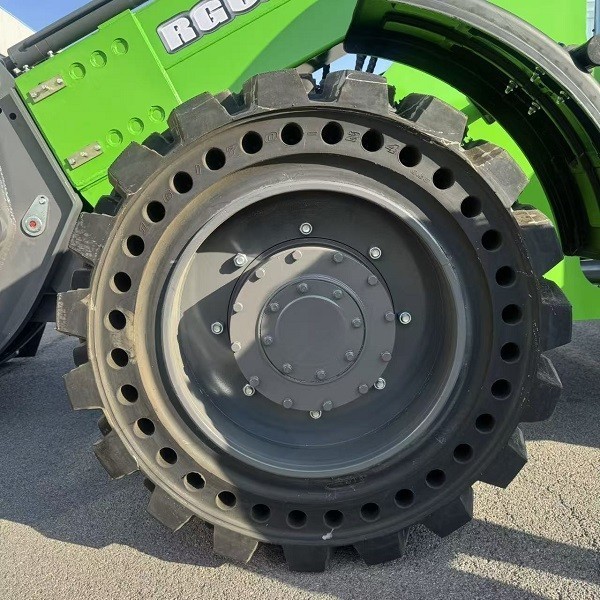

12v Converter500ATyre Size16/70-20
Gear Pump Displacement32ml*2Front / Rear Tire Pressure0.33、0.3
Hydraulic Oil CoolerYesBattery Charger380v@Ah


Charging Speed:Start 20%-End 100%4 hours and 50 minutes
Steering System


Battery Capacity / Hydraulic Oil Capacity
Item
ParametersItemParameters

Type

Full Hydraulic SteeringBattery

153.6V/460AH/70kw

Steering Angle(°)30±1Theoretical Hydraulic Oil Volume(L)68.5
System Working Pressure(MPa)16Single Axle(L)14


Transmission Gear Oil(L)


24

Product details
